319-364-5400Gate Operator - Commercial Series
Reliable, heavy-duty operators built to keep high-traffic gates moving safely, day in and day out, with myQ connectivity and battery backup.
Choose a model

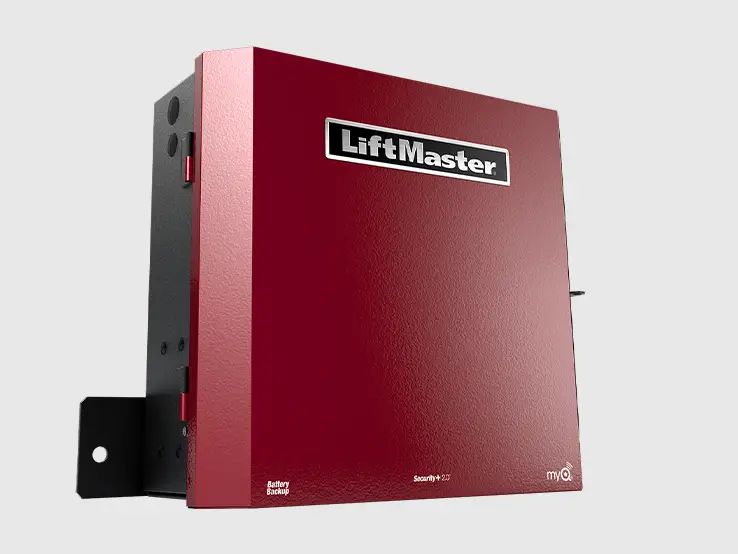

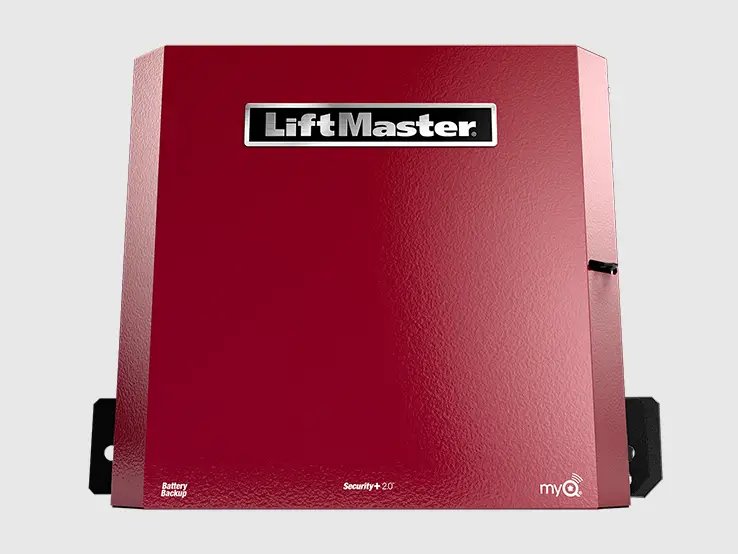

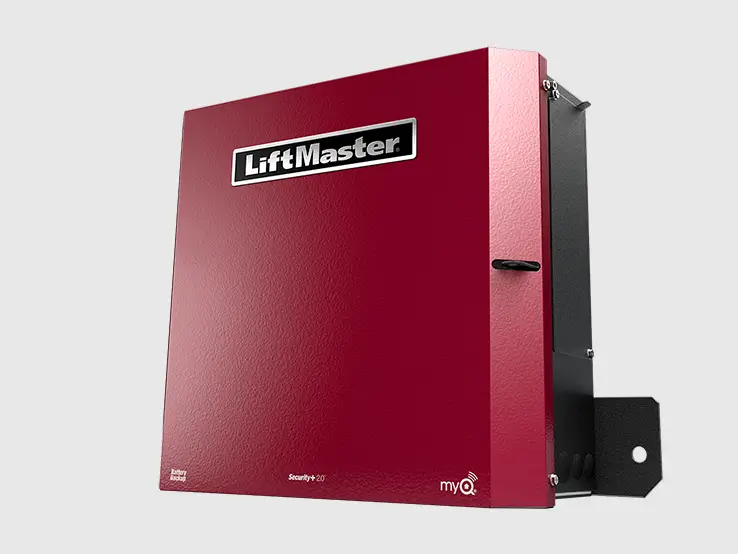

The LiftMaster HCTDCUL is a compact, ultra-quiet high-traffic trolley operator ideal for apartment buildings, with Security+ 2.0, battery backup and electronic reversing device. 5-year warranty.
LiftMaster HCTDCUL Commercial Door Operator
The LiftMaster HCTDCUL is a compact, ultra-quiet high-traffic trolley operator ideal for apartment buildings, with Security+ 2.0, battery backup and electronic reversing device. 5-year warranty.
Product Specifications
Manufactured by LiftMaster
Industry-leading brand of professionally installed garage door openers and gate entry systems
Drive System
Ceiling Mount Installation (trolley drive)
Power
1⁄2 HP, DC Motor, 24V.
Automatic Thermal Protection
Voltage
Single-Phase: 120V and 230V, 60Hz
Dynamic Braking System
Adds substantial gate position control at all points of travel
Soft start/stop
For smooth and seamless operation
Timer-to-Close
The door will close automatically after the time inverval you've selected
myQ® Technology
Allows you to monitor and operate your garage door opener safely using your smartphone.
* Requires purchase of internet gateway (828LM).
Security+ 2.0
Safeguards facility access with rolling code technology, opening for registered devices only.
Specialized Options Available
LiftMaster offers a range of options, such as a selection of keypads or access control cards, vehicle detection solutions, and traffic lights.
Certifications
UL 325 and CSA listed
Warranty*: 5 years on motor
* Other parts of the opener are guaranteed for 1 year (accessories are not covered by this warranty).
* Photocells and wall button are guaranteed for one year. Please refer to manual for details.
Product inclusion
Infrared photocells
Trough-beam technology offer you an entrapment protection.
External alarm reset button
Instantly resets the built-in safety alarm siren
Emergency Release
The emergency key release provides additional safety in the event of a power outage.
Solid Steel Rail
Yellow zinc dichromate rail finish offers maximum rust protection
Battery Backup Included
2 battery (7Ah, 12Vdc) provinding up to 112 cycles or up to 24 days—ensuring safe and continuous operation.
Optional Accessories
811LMX
Encrypted DIP Single-Button Remote Control
813LMX
Encrypted DIP 3-Button Remote Control (813LMX)
L932M
2-Button Keychain Remote Control MAX
893MAX
3-Button Remote Control MAX
894LT
4-Button Learning Remote Control
K7633672
1-Button Wall Station / Reset switch APBS1
02-103
3-Button Wall Station NEMA 1
KPW250
Wireless Commercial Keypad
STAR1000
Commercial Access Control Receiver
KPR2000
Wired Keypad and Proximity Reader
878MAX
Wireless Keypad MAX
828LM
LiftMaster Internet Gateway
RGL24LY
Red/Green Traffic light (requires TLS1CARD card, sold Separately)
RGL-CTL
Hi-intensity Red/ Green Traffic Light Compact (requires TLS1CARD card, sold Separately)
50-HERK2
Motion Detector 24V (optional Remote control)
CPS-UN4G
Monitored Infrared Photoelectric Sensors NEMA 4 (included in all operators)
CPS-UN4
Monitored Thru-Beam Photoelectric Sensors NEMA 4
LMRRUL
Monitored Retro-Reflective Photoelectric Sensor
65-5202
Pneumatic Sensing Edge with Take up Reel, 14ft or 22ft
OES-SD
Monitored Optical Edge System NEMA 4
Discover the LiftMaster MAXUM Commercial Door Operators
Get a free quote for your opener
Warning
Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly.
