Commercial Garage Doors Openers for Every Industry

The right commercial operator depends on the door type, its size and weight, and how often it opens and closes each day. Light-duty operators are designed for doors with occasional use, while medium-duty operators handle heavier doors and more frequent cycles. For demanding applications, the LiftMaster MAXUM series offers DC-powered trolley, jackshaft and hoist models, with capacities of up to 2,200 lb on some models. Your Garaga specialist can assess your door and recommend the operator best suited to your needs.

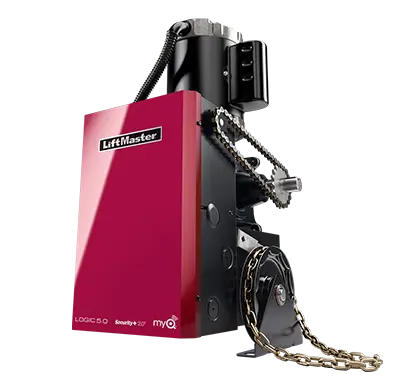

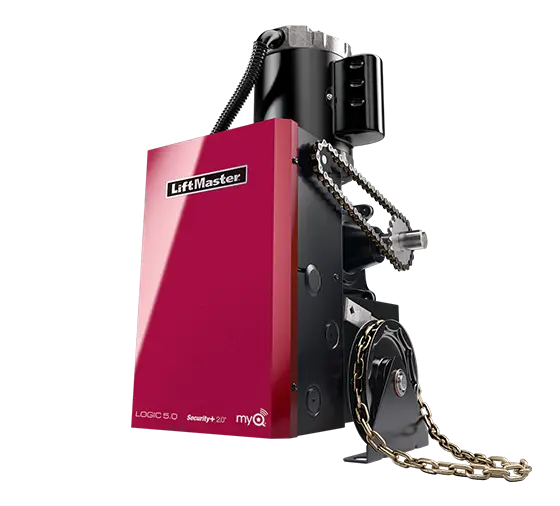

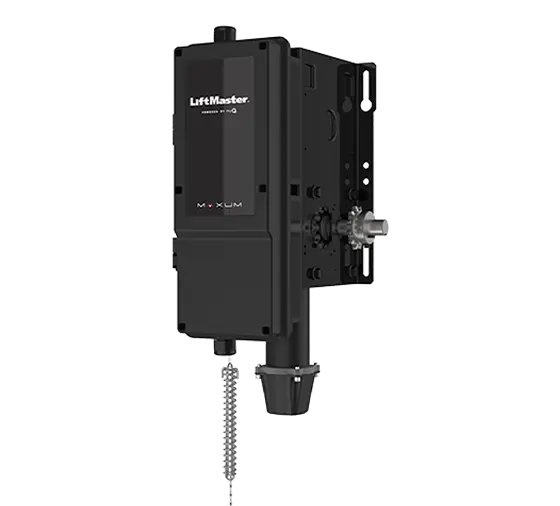

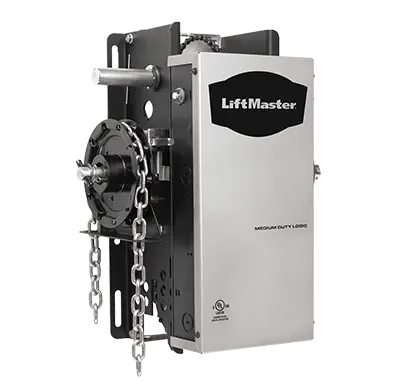

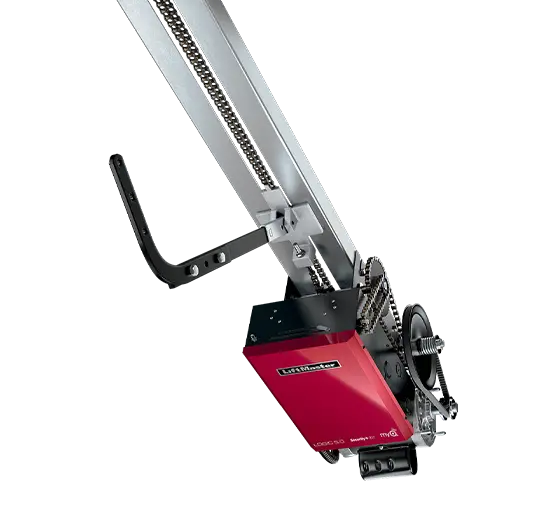

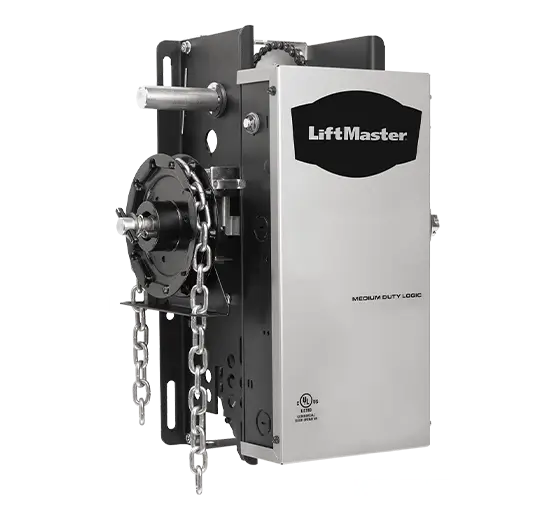

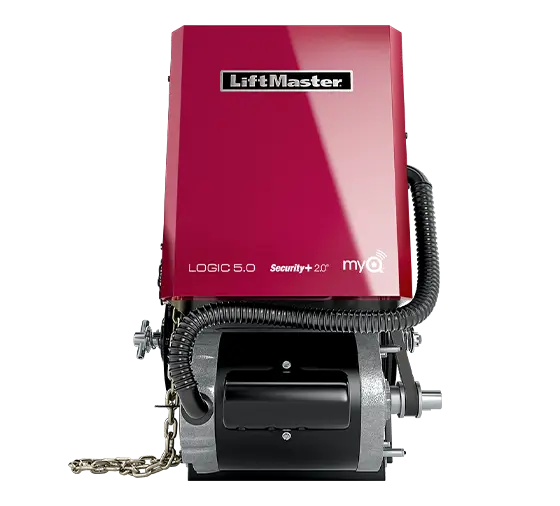

A jackshaft (wall-mount) operator installs on the wall beside the door and drives the torsion shaft directly. It frees up ceiling space, suits garages with limited headroom, and requires a torsion spring system plus enough side room. A trolley operator mounts to the ceiling: a carriage travels along a rail and pulls or pushes the door open through an arm attached to it. A hoist operator, mainly used in commercial and industrial settings, mounts on the side of the door and drives the shaft through a chain and sprockets, usually with a manual hand chain for emergencies. It suits heavy sectional doors and high-lift or vertical-lift configurations where a trolley can't be used.

The duty series depends on door weight and how often the door cycles. Light-Duty operators suit applications with a limited number of cycles per hour, while Medium-Duty operators are built for heavier doors and more frequent cycling, making them the stronger choice for busier openings. To choose the right operator for your application, contact your Garaga specialist.

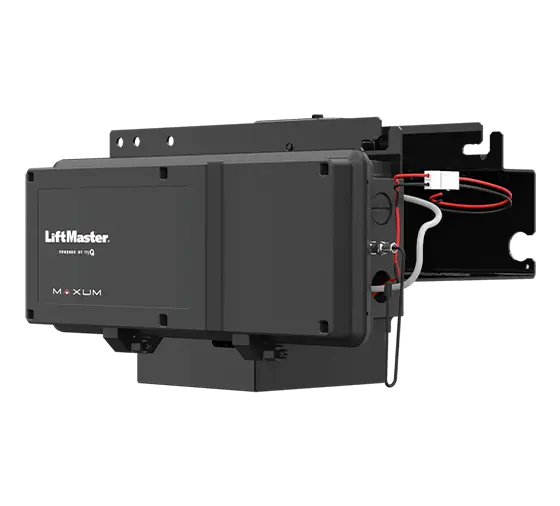

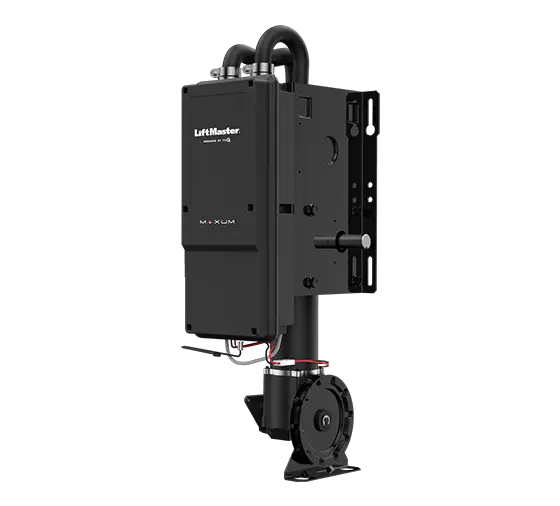

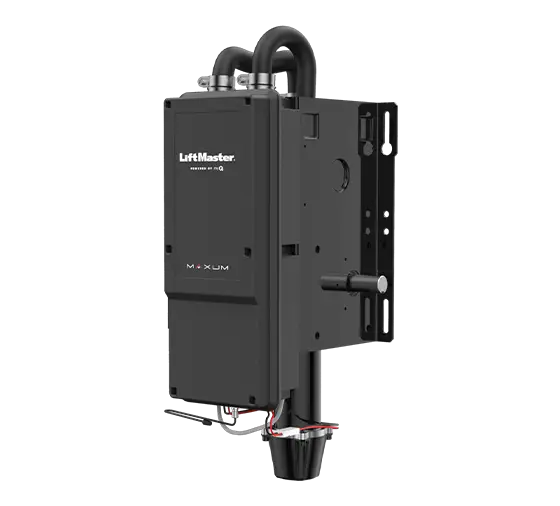

Capacity varies by model. The Maxum JHDC and TDC operators support doors weighing up to 2,200 lbs, while the Maxum JDC is designed for doors up to 700 lbs. For gates, the INSL24UL operator handles gates weighing up to 2,200 lbs. For Light-Duty and Medium-Duty capacities, or to confirm which operator suits your door, contact your Garaga specialist.

No. Residential openers are not designed for commercial doors. They typically run on 115 volts, while commercial operators are available in 115, 220 or 575 volts. Usage is also very different. A residential door cycles about twice a day, with springs rated around 10,000 cycles. A commercial door, such as a loading dock door, can cycle 25 to 50 times a day, with springs rated from 25,000 to 100,000 cycles. Commercial doors are also heavier, built with thicker steel and panels up to 3" thick. A residential opener simply isn't built for that load or that frequency. To choose the right commercial operator for your door, contact your Garaga specialist.

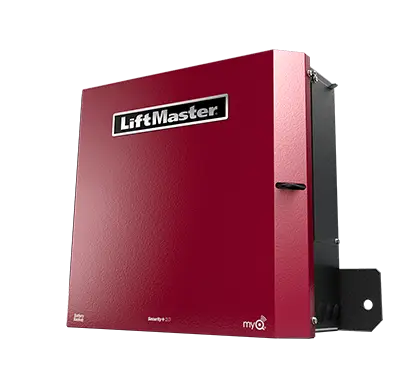

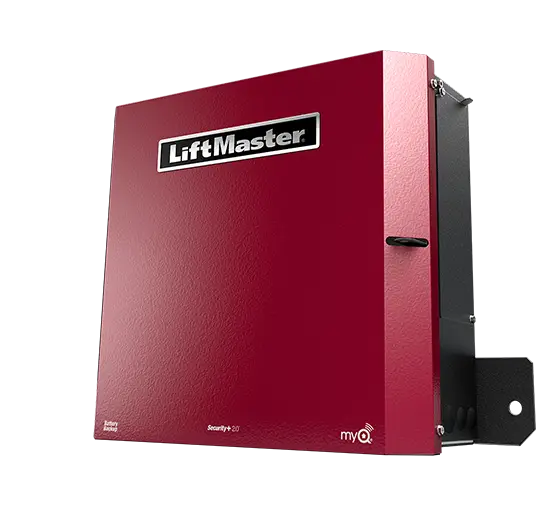

The HCTDCUL is built for this type of application. It is an ultra-low-profile, high-traffic opener designed for apartment buildings. At only 8 inches high, it suits entrances that are used frequently throughout the day. The MAXUM series is also a good fit, with models designed for extended-duty and continuous-duty applications. To choose the operator that fits your building's door and traffic, contact your Garaga specialist.

Yes. The Gate Operator - Commercial Series is built for gates, not garage doors, with models like the HCTDCUL for high-traffic apartment entrances and the INSL24UL, a heavy-duty industrial slide gate operator with a 24V brushless DC motor lifting gates up to 2,200 lbs.

Yes, depending on the model. MAXUM series operators feature built-in Wi-Fi to connect directly to the facility's wireless network and enable myQ or myQ Facility for remote monitoring, diagnostics and over-the-air firmware updates. They are also compatible with an optional battery backup, so the door can keep working during a power outage. To confirm which configuration suits your door, contact your Garaga specialist.

The cost of a commercial operator depends on several factors: the operator model, the type of mounting (trolley or jackshaft), the voltage (115, 220 or 575 volts) and the power required. Heavier doors and higher daily cycle counts call for a more robust operator, which affects the price. Options such as Wi-Fi connectivity, battery backup and access control accessories can also add to the cost. Finally, installation costs vary depending on whether it is new construction or a replacement. For a quote tailored to your door and your needs, contact your Garaga specialist.
