Garage Door Opener - Logic 5

Ideal for increased door weight and frequency of cycles, LiftMaster medium-duty commercial door operators make a strong addition to any facility.

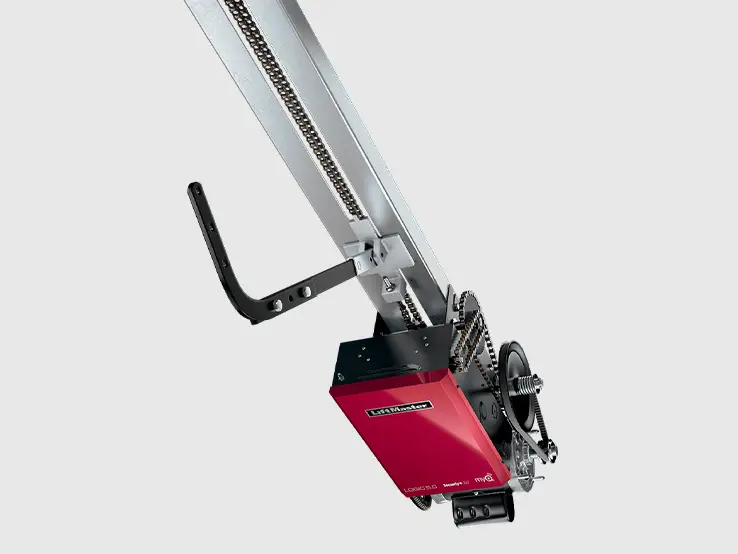

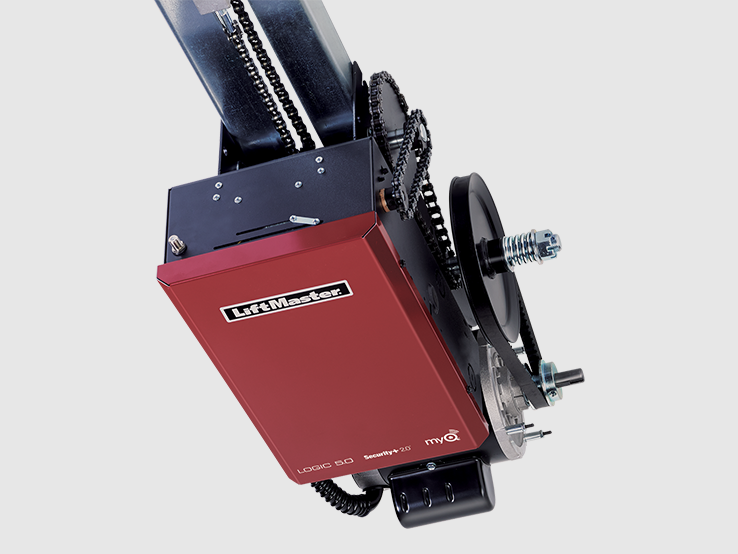

Right-side view of the LiftMaster T Logic 5.0 trolley commercial door operator.

Choose a model

  • GH GH The LiftMaster GH heavy industrial hoist operator is built for high-cycle commercial use, up to 5 HP, with Security+ 2.0 radio receiver, solenoid brake and CPS entrapment protection. Rugged and reliable.
  • GT GT The LiftMaster GT heavy industrial trolley operator handles standard-lift sectional doors at up to 25 cycles/hour, with Security+ 2.0 receiver, solenoid brake and CPS entrapment protection. 2-year warranty.
  • H H The LiftMaster H industrial hoist operator is built for vertical, high-lift and rolling doors at up to 25 cycles/hour, up to 80-90 cycles per day. With Security+ 2.0 receiver, electrical brake and CPS entrapment protection.
  • T T The LiftMaster T industrial trolley operator is built for standard-lift sectional doors, with Maintenance Alert System, Security+ 2.0 receiver and CPS entrapment protection for dependable daily use.
  • RBH RBH The LiftMaster RBH jackshaft operator is built for larger sectional, high-lift or rolling doors at up to 25 cycles/hour, for less than 90 cycles per day. With electrical brake, Security+ 2.0 receiver and CPS protection. 2-year warranty.

The LiftMaster T industrial trolley operator is built for standard-lift sectional doors, with Maintenance Alert System, Security+ 2.0 receiver and CPS entrapment protection for dependable daily use.

T
Get My Quote Now

LiftMaster T Commercial Door Operator

The LiftMaster T industrial trolley operator is built for standard-lift sectional doors, with Maintenance Alert System, Security+ 2.0 receiver and CPS entrapment protection for dependable daily use.

Product Specifications

Manufactured by LiftMaster

Industry-leading brand of professionally installed garage door openers and gate entry systems

Drive System

Ceiling Mount Installation (trolley drive)

Power

1⁄2, 3⁄4 and 1 HP.
Overload Protection

Voltage

Single-Phase: 120V and 230V, 60Hz
Triphase: 208V, 230, 460 & 575V, 60Hz

Brake

Solenoid Brake standard on 3/4 and 1 HP operators.
Optional on 1/2 HP.

Timer-to-Close

The door will close automatically after the time inverval you've selected

myQ® Technology

Allows you to monitor and operate your garage door opener safely using your smartphone.
* Requires purchase of internet gateway (828LM).

Security+ 2.0

Safeguards facility access with rolling code technology, opening for registered devices only.

Specialized Options Available

LiftMaster offer options for damp environment (carwash) available.

Certifications

Compliant with ANSI/CAN/UL325 standards

Warranty*: 2 years on motor

* Other parts of the opener are guaranteed for 1 year (accessories are not covered by this warranty).
* Photocells and wall station are guaranteed for one year. Please refer to manual for details.

Brochure Owner's manual Replacement Parts Maintenance Program

Product inclusion

Infrared photocells

Trough-beam technology offer you an entrapment protection.

Wall Station with MAS

OPEN/CLOSE/STOP allows complete control of the door. With Maintenance Alert System.

Manual Disconnect

Allows door opener to be operated manually

Solid Steel Rail

Steel Rail with chain driven mechanism

Optional Accessories

Remotes

891LM

Single-Button remote control

893LM

Three Button Remote Control

811LMX

Encrypted DIP Single-Button Remote Control

813LMX

Encrypted DIP 3-Button Remote Control

L932M

2-Button Keychain Remote Control MAX

893MAX

3-Button Remote Control MAX

Wall Controls

02-103L

3-Button Wall Station NEMA 1

02-406

3-Button Outdoor Wall Station with Key NEMA 4/12

02-403-N4XALD

3-Button Outdoor Wall Station NEMA N4/4X/12

02-401

Mushroom-Button Control Station NEMA 1

02-110

Key Control Station NEMA 1 with Stop Button

Access Systems

878MAX

Wireless Keypad MAX

KPW250

Wireless Commercial Keypad

STAR1000

Commercial Access Control Receiver

Powerful Additions

828LM

LiftMaster Internet Gateway

86LM or 86LMT

Antenna extension kit

Traffic Control

RGL24LY

Red/Green Traffic light (requires TLS1CARD card, sold Separately)

RGL-CTL

Hi-intensity Red/ Green Traffic Light Compact (requires TLS1CARD card, sold Separately)

50-HERK2

Motion Detector 24V (optional Remote control)

50450

Sectional Door Interlock Switch

Safety Devices

CPS-U

Monitored Infrared Photoelectric Sensors NEMA 1 (included in all operators)

CPS-UN4

Monitored Thru-Beam Photoelectric Sensors NEMA 4

CPS-RPEN4

Monitored Retro-Reflective Photoelectric Sensors NEMA 4

LC36M

Monitored Light Curtain 36'' length

65-5202

Pneumatic Sensing Edge with Take up Reel, 14ft or 22ft

OES-SD

Monitored Optical Edge System NEMA 4
